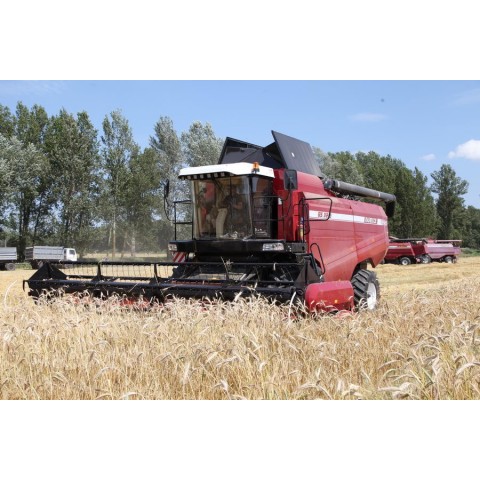

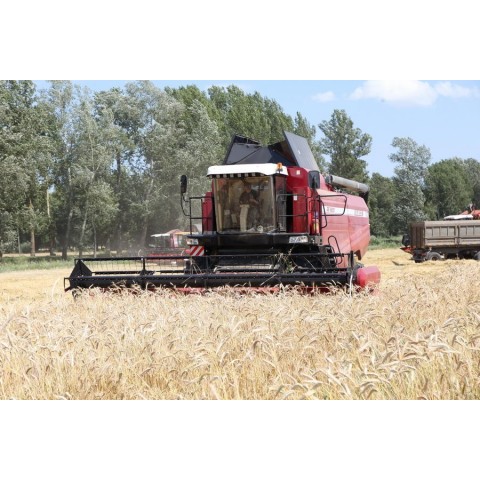

Combine harvester GS12A-1

The GS12A-1 combine harvester is a further development of the popular GS12 combine harvester at a higher technical level with an improved design.

330 horsepower

The design of the incline conveyor was changed, dust extraction was installed, "IVIS" chains were also used and a 4-row belt drive was installed. In this way, we increased the reliability of the technical process and guaranteed the comfort of the machine operator.

help_outlineAsk about product
Combine harvester GS12A-1

Combine harvester GS12A-1

The GS12A-1 combine harvester is a further development of the popular GS12 combine harvester at a higher technical level with an improved design.

330 horsepower

The design of the incline conveyor was changed, dust extraction was installed, "IVIS" chains were also used and a 4-row belt drive was installed. In this way, we increased the reliability of the technical process and guaranteed the comfort of the machine operator.

I accept privacy policy rules

70l/s

Unloading speed



9m3

Tank capacity



8 KM/h

Working speed



330HP

Engine JaMZ-238DE-22



The KZS-1624-1 "PALESSE GS16" combine harvester occupies the highest level of PALESSE combines. The most modern machine with a power of 530 HP. it is intended for agricultural enterprises with large amounts of grain.

The two-drum threshing system with pre-acceleration of the grain mass flow ensures careful threshing with high efficiency. Instead of a straw walker, the combine is equipped with a twin rotor rotor, "spiral" with fixed lattice decks and rotating in opposite directions. This combined scheme, combining the advantages of drum threshing and rotor, is best suited for farms that harvest large amounts of maize along with the grain.

The high level of automation of the processes performed allows to eliminate operator errors and ensure stable operation of the combine in changing harvesting conditions. The spacious cab of the new unified series provides all conditions for the combine without stress and fatigue during a long shift.

Grain tank
Grain tank capacity9 m 3
Unloading height4000 mm
Unloading speed70 l / s
Straw chopper80 pcs.
Working speed8km / h
Transport speed20km / h
Dimensions
Length / width / height in working position11200/7600/4650 mm
Total mass16,600 kg
PalesseJaMZ-238DE-22
Engine modelYaMZ-65857-03
Rated power, kW / (KM)243/330
Tank capacity, l600
Adapters
Grain header6.0 / 7.0 / 9.2
Rapeseed table6.0 / 7.0 m
Corn attachment (rows / m)6; 8 / 4.2; 5.6
Sunflower header (rows / m)8; 12 / 5.6; 8.4
Pick-up3.4 / 4.4m
Soybean attachment6.0 / 7.0 / 9.0 m
Threshing system
Threshing drum width1500 mm
Threshing drum diameter800 mm
Rotation of the threshing drum440 - 875 rpm
