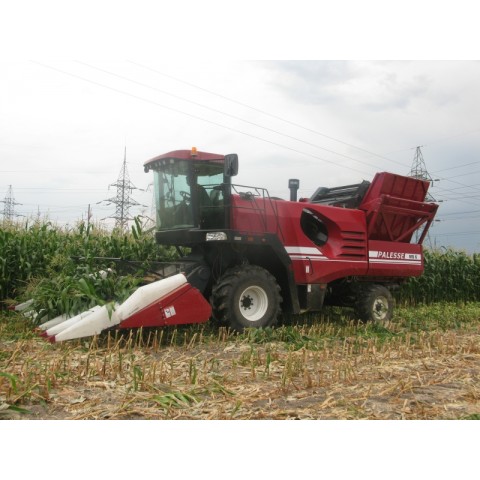

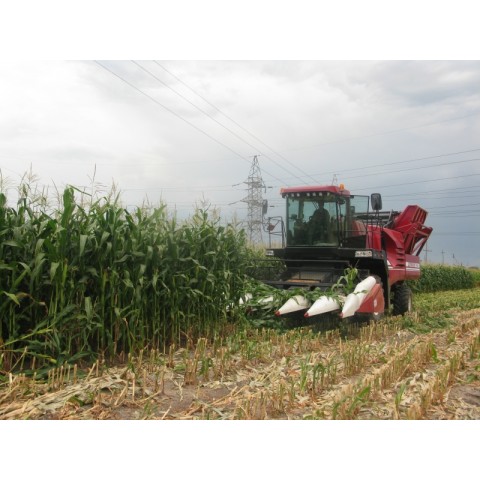

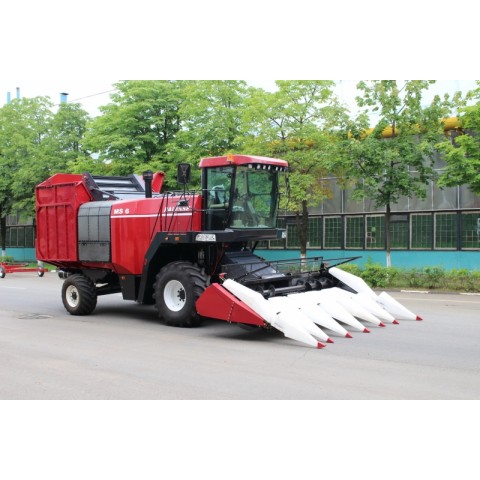

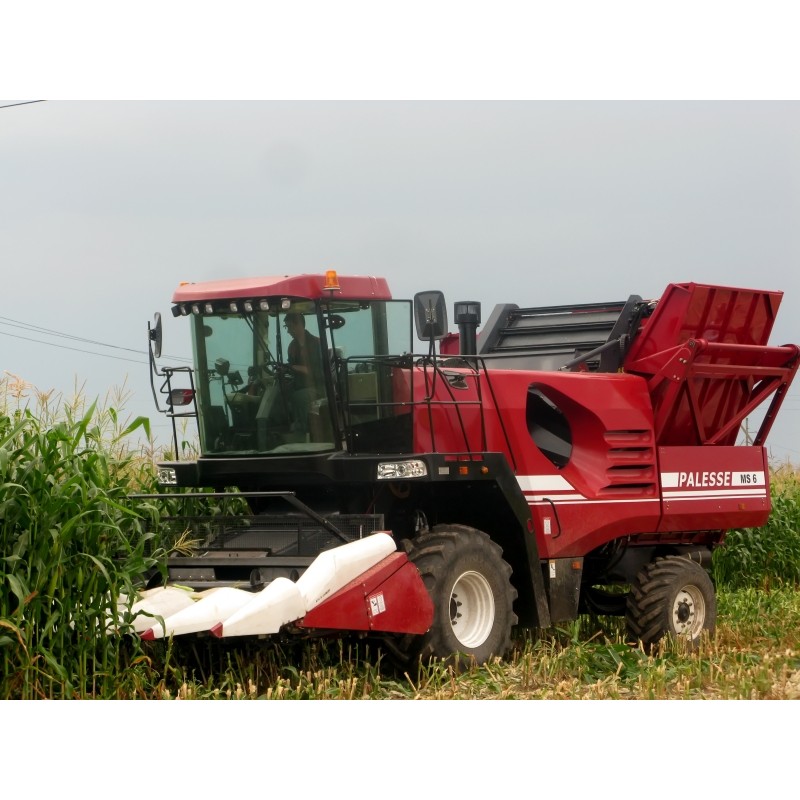

SELF-PROPELLED MAIZE COMBINE MS-6

The self-propelled MS-6 maize cobs harvester is designed for harvesting whole maize cobs.

Engine power 230 hp

The layout of the controls meets modern ergonomic requirements. The key operational parameters are controlled in real time. The operator is protected from noise, vibration and dust.

help_outlineAsk about product
SELF-PROPELLED MAIZE COMBINE MS-6

SELF-PROPELLED MAIZE COMBINE MS-6

The self-propelled MS-6 maize cobs harvester is designed for harvesting whole maize cobs.

Engine power 230 hp

The layout of the controls meets modern ergonomic requirements. The key operational parameters are controlled in real time. The operator is protected from noise, vibration and dust.

I accept privacy policy rules

230KM

Engine power
12 KM/h

Working speed
Engine
ModelYaMZ (stage IIIA)
Maximum engine torqueRPM2200
Nominal powerkW / hp170/230
Tank capacityl500
Bunker capacitym 310
Unloading heightm3.25
Working speedkm / h10
Transport speedkm / htwenty
Wheelbasem4
Wheel track:
- drag torsion (drive)mm2600 ± 50
- drivingmm2600 ± 50
Dimensions of the combine with header:
- in working position:
- lengthm10.5
- widthm4.6
- heightm4
- in transport position:
- lengthm19.5
- widthm4.0
- heightm4.0
Librakg13600
Heder
Dimensions of the header on a transport trolley:
- lengthmm7870
- widthmm2254
- heightmm1910
Working widthm4.2
Number of rows collected6
Row spacingcm70 ± 3.5
Minimum cutting heightmm100
Header weightkg2180
