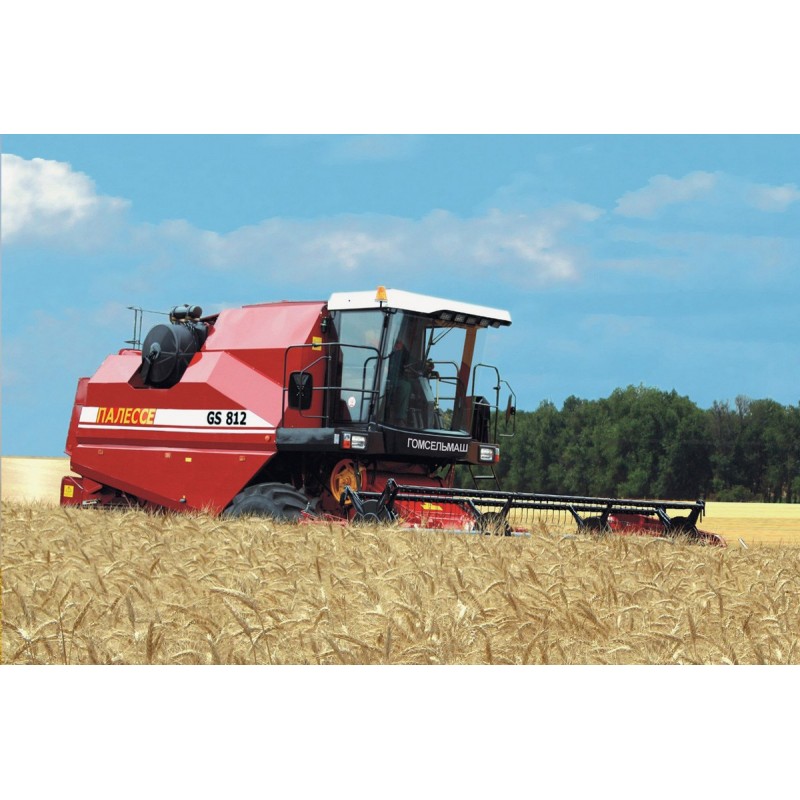

PALESSE GS812 - a classic single-drum, middle-class harvester

Reliable technological scheme and low operating costs make PALESSE GS812 the optimal solution for farms with low and medium grain yield.

230 horsepower

The modification of the GS812 differs depending on the undercarriage with tracks, which allow effective use on soils with low bearing capacity. The combine can be equipped with straw walkers. Depending on the market, the combine can be equipped with engines from different manufacturers.

help_outlineAsk about product
PALESSE GS812 - a classic single-drum, middle-class harvester

PALESSE GS812 - a classic single-drum, middle-class harvester

Reliable technological scheme and low operating costs make PALESSE GS812 the optimal solution for farms with low and medium grain yield.

230 horsepower

The modification of the GS812 differs depending on the undercarriage with tracks, which allow effective use on soils with low bearing capacity. The combine can be equipped with straw walkers. Depending on the market, the combine can be equipped with engines from different manufacturers.

I accept privacy policy rules

16kg/s

40l/s

Unloading speed



16kg/s

5.5m3

Tank capacity



8 KM/h

Working speed



16kg/s

Wydajność
230HP

Engine JaMZ-236NE2-47



The KZS-812 "PALESSE GS812" combine harvester is a classic single-drum medium-class combine with a thresher 1200 mm wide and a straw shaker with four keypads. Reliable technological scheme and low operating costs make PALESSE GS812 an optimal solution for farms with low and medium grain yield. production. The use of special adapters for picking different plants increases the possibilities of the PALESSE GS812, increases the annual load and shortens the payback periods.


The Big Drum threshing machine with 800 mm high inertia drum when cleaned under normal humidity conditions gives excellent results, ensuring a high performance of the combine.
The optimal height difference of the steps, the intensive movement of the straw walker keys ensure the most complete separation of the residual grain.
The three-stage cleaning system with an area of about 4 m 2 is the optimal solution for a mid-range combine.
Electric control of the fan cleaning speed from the cab: optimal setting for various crops and harvesting conditions.
Optymalna różnica wysokości stopni, intensywny ruch klawiszy wytrząsaczy zapewnia najbardziej całkowite oddzielenie resztek ziarna.
A large cabin with a panoramic window, equipped with air conditioning, fully adjustable operator's seat - real comfort at a high level. The on-board computer automatically checks the sensor circuits and mechanisms if they are in good condition. Automatic adjustment of the working elements (rotation of the threshing drum and cleaning fan) is performed by a computer based on the harvested crops and their condition.
Elektryczne sterowanie prędkością czyszczenia wentylatora z kabiny: optymalne ustawienie dla różnych upraw i warunków zbioru.
The inclined conveyor is distinguished by its reliability, uniform feeding of the grain mass, forming the basis for stable and high-quality threshing.
The use of hydropneumatic accumulators on the lifting / lowering cylinders of the inclined conveyor improves the quality of field terrain following, prevents damage to the header and the inclined conveyor.
The combine's 500-liter fuel tank, made of high-quality polymeric materials, has advantages over metal fuel tanks - durability and corrosion resistance. It is an effective solution to the problem of clogging of the fuel system by corrosion products.

The smooth operation of all working systems of the combine is ensured by the 210 HP MMZ engine. (YMZ-236NE2 230 hp engine can be used). The top platform of the combine is equipped with safe and convenient maintenance of the engine installation.

Rape harvesting.

Use of rape harvesting equipment. Active side baffles with cutting devices clearly cut off the cleaned rape along the edge of the crown. In combination with the headlamps, this reduces the loss of rapeseed to a minimum.

Harvesting corn for grain.

Harvesting corn for grain becomes an easy task using special equipment. It includes a header with a chopper and stalk chopper, a threshing drum drive, interchangeable concave and additional equipment for the combine's working systems. The cobs are carefully separated for threshing, and the stalks are finely chopped. The field remains completely ready for plowing.

Working in difficult conditions.

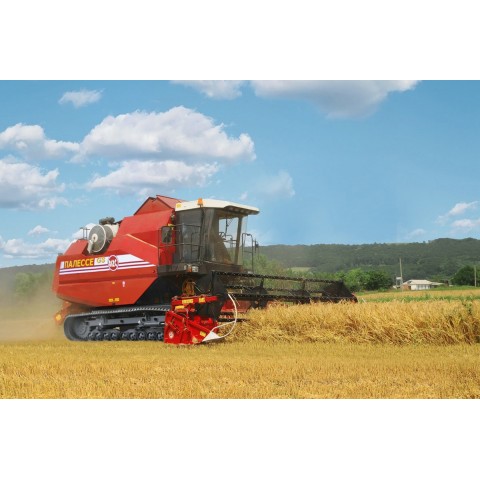

The PALESSE GS812 combine effectively solves the problem of harvesting grain and soybean in conditions of hardened soil. For this purpose, the machine is equipped with a rubber reinforced crawler track as well as a universal low-cut grain header.
Grain tank
Grain tank capacity5.5 m 3
Unloading height3800 mm
Unloading speed40 l / s
Straw chopper knives24 pcs.
Working speed8km / h
Transport speed20km / h
Dimensions
Length / width / height in working position10500/6500/4500 mm
Total mass12,300 kg
PalesseGS 812
Engine modelJaMZ-236NE2-47
Rated power, kW / (KM)169/230
Tank capacity, l500
Adapters
Grain header4.0 / 5.0 / 6.0 / 7.0 m
Rapeseed table6.0 m
Corn attachment (rows / m)6; 8 / 4.2
Sunflower header (rows / m)8 / 5.6
Pick-up3.4 m
Soybean attachment6.0 / 7.0 m
Threshing system
Threshing drum width1,200 mm
Threshing drum diameter800 mm
Rotation of the threshing drum510 - 875 rpm
