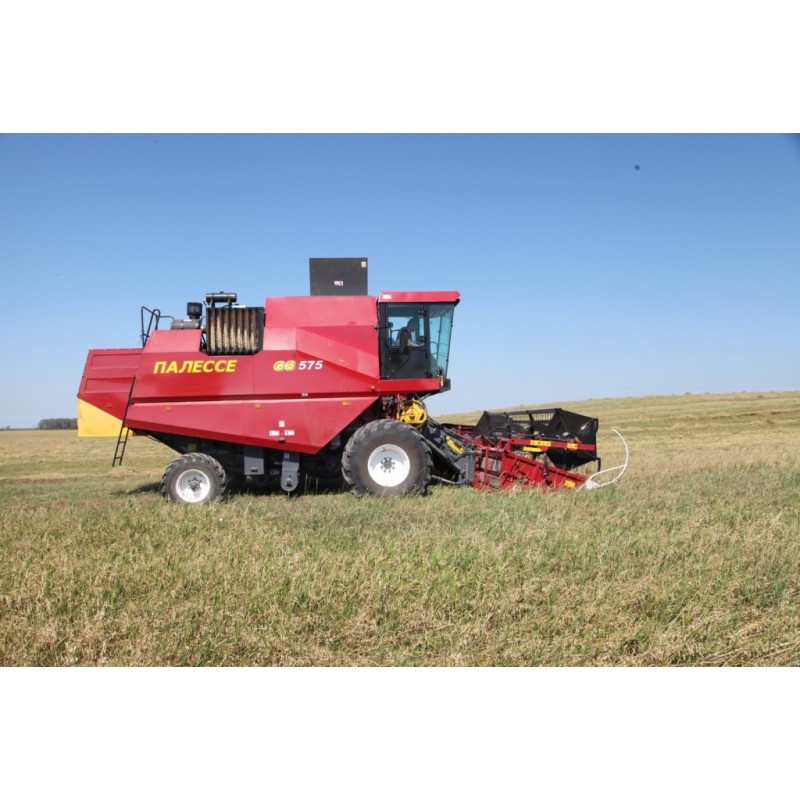

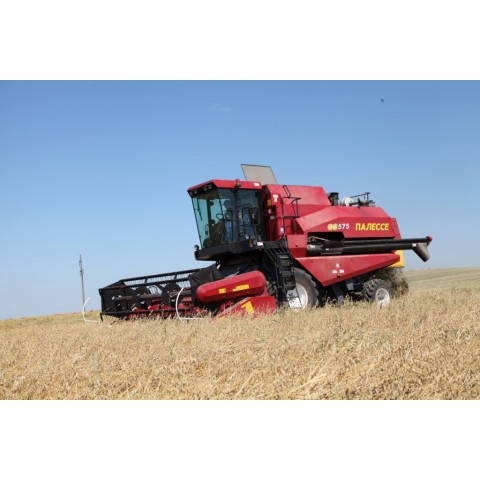

Combine harvester GS575

PALESSE GS575 - an "economy class" combine harvester for small and medium-sized enterprises that require agile and agile technology.

155 horsepower

The classic 1200 mm wide thresher with a large drum is reliable. Stable separation and high grain quality are ensured by the four-arm straw walker and three-stage cleaning.

A simple cabin with analog devices that display data from an automatic control system provides quite suitable working conditions. These are seats for increased comfort, air conditioning, a good overview of the header work area.

In addition to adapters with a coverage width of 4 and 5 meters, the combine has been modified, which can be equipped with a 6-meter header for soybean and cereal cultivation. Possibility to mount motors of different power.

help_outlineAsk about product
Combine harvester GS575

Combine harvester GS575

PALESSE GS575 - an "economy class" combine harvester for small and medium-sized enterprises that require agile and agile technology.

155 horsepower

The classic 1200 mm wide thresher with a large drum is reliable. Stable separation and high grain quality are ensured by the four-arm straw walker and three-stage cleaning.

A simple cabin with analog devices that display data from an automatic control system provides quite suitable working conditions. These are seats for increased comfort, air conditioning, a good overview of the header work area.

In addition to adapters with a coverage width of 4 and 5 meters, the combine has been modified, which can be equipped with a 6-meter header for soybean and cereal cultivation. Possibility to mount motors of different power.

I accept privacy policy rules

40l/s

Unloading speed



3.2m3

Tank capacity


8 KM/h

Working speed


155HP

Engine JaMZ-238DE-22


PALESSE GS575 - an "economy class" combine harvester for small and medium-sized enterprises that require agile and agile technology.

The classic 1200 mm wide thresher with a large drum is reliable. Stable separation and high grain quality are ensured by the four-arm straw walker and three-stage cleaning.

A simple cabin with analog devices that display data from an automatic control system provides quite suitable working conditions. These are seats for increased comfort, air conditioning, a good overview of the header work area.

In addition to adapters with a coverage width of 4 and 5 meters, the combine has been modified, which can be equipped with a 6-meter header for growing soybeans and cereals. Possibility to install motors of different power.

Grain tank
Grain tank capacity7 m 3
Unloading height3500 mm
Unloading speed50 l / s
Straw chopper knives80 pcs.
Working speed8 km / h
Transport speed20 km / h
Dimensions
Length / width / height in working position10600/8900/4500 mm
Total mass14040 kg
PalesseGS575
Engine modelMMZ D-260.1
Rated power, kW / (KM)114/155
Tank capacity, l300
Adapters
Grain header4.0 / 5.0
Rapeseed table6.0 m
Corn attachment (rows / m)6 / 4.2
Sunflower header (rows / m)8; 12 / 5.6; 8.4
Pick-up3.4 / 4.4 m
Soybean attachment6.0 / 7.0 m
Threshing system
Threshing drum width1500 mm
Threshing drum diameter800 mm
Rotation of the threshing drum440 - 875 rpm
