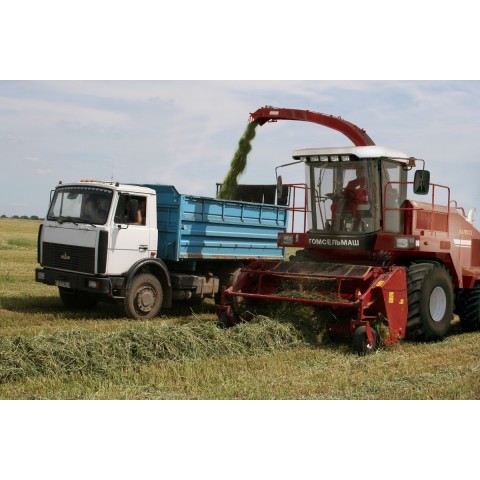

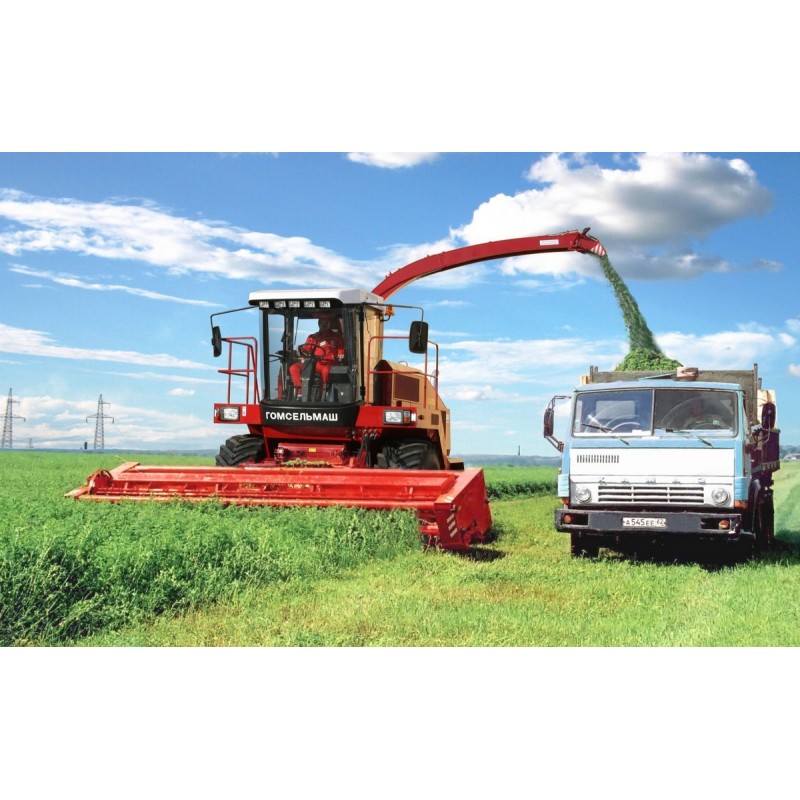

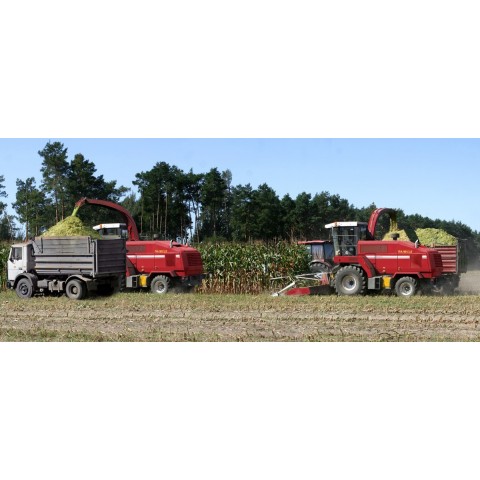

HIGH CAPACITY PALESSE FS80

PALESSE FS80 is used in medium and large farms. Modern solutions guarantee the availability of high power and low operating costs.

Engine power 470 hp

The adapters have been designed for high efficiency and high-quality cutting: the header feeds the corn stalks exactly in the direction of the longitudinal axis of the feeding apparatus, and the pick-up, thanks to its design, ensures the shortest path of the collected mass to the rollers.

help_outlineAsk about product
HIGH CAPACITY PALESSE FS80

HIGH CAPACITY PALESSE FS80

PALESSE FS80 is used in medium and large farms. Modern solutions guarantee the availability of high power and low operating costs.

Engine power 470 hp

The adapters have been designed for high efficiency and high-quality cutting: the header feeds the corn stalks exactly in the direction of the longitudinal axis of the feeding apparatus, and the pick-up, thanks to its design, ensures the shortest path of the collected mass to the rollers.

I accept privacy policy rules

115t/h

Capacity



470HP

Engine power


14 KM/h

Working speed


A protection system for the feeding unit, automatic knife sharpening and a preservative adding system are standard equipment.

A cabin with air conditioning, heater, and a comfortable seat provides the necessary level of operating comfort.

BENEFITS:

  • The applied design solutions, a reliable and economical 450 HP engine, components of a high technical level - everything is designed for stable operation of the forage harvester in the most difficult conditions with high cutting quality.
  • The high hydraulic ratio of the machine ensures technological reliability, and the quick adjustment of working elements from the cab saves time. The construction of the self-propelled forage harvester uses a hydraulic transmission of the feeding unit with smooth adjustment of the cutting length from the operator's workplace, truck hydraulics, hydraulics of working elements and steering wheel control.
  • The spacious "Comfort Max" cabin provides a perfect panoramic view of the working area with any adapters, solid protection against heat, cold, vibration, noise and dust. Air conditioning, heater, additional seat, cooling box for drinks, sun blind are already standard equipment of the "PALESSE FS80" cabin. Thanks to the control system, the work seat and the steering wheel are ideally suited to the operator of any height and body build.
  • The "PALESSE" FS80 forage harvester is equipped with a pick-up. The field area is copied accurately and without damaging the root system. The design of the pick-up ensures the shortest path of the silage to the feeding unit, increasing the stability of the pick-up. The pick-up device is compactly located under the auger, so by inverting the rollers of the feeder, the haylage is removed directly in the field and requires no additional cleaning.
  • The rowless crop header cuts maize stalks cleanly and at the same height. The stalks are fed into the feeder from their lower side, which prevents the cobs from being lost and leaves the field perfectly clean. During the harvesting of the corn, the color of the wax ripens with the hard stalks, the cut quality and the forage consistency of the mass remain stable.
  • Smooth adjustment of the cutting length can be made from the cabin by means of a controller on the control panel in two ranges 6-8 and 11-15 mm (with 40 knives). It is also possible to work with 20 knives on the knife drum.
  • 40 knives placed in 4 rows on the knife drum set at an angle towards the shearbar. Provides a clean cut and saves energy. Due to the angle of inclination, the knives move the masses from the edge towards the center of the drum, thus reducing the friction against the walls.
  • Grinding the knives of the knife drum can be done automatically. Provides high-quality cut, increased productivity and reduced fuel consumption.
  • The cutting unit protection system, included in the standard equipment of the combine, prevents the drum knives from being damaged by foreign objects. The degree of sensitivity of the protection system is installed from the cabin. Metal and stone detector sensors provide signals to an electronic module located in the cabin. The system reacts immediately, automatically disengages the drive from the power unit shaft and stops the mass flow. By activating the electro-hydraulic reverse, the foreign object is quickly removed.
  • The capacity of the fuel tank provides 10 hours of comprehensive work. Cleaning the forage harvester, radiator, filters, and the cabin from dust and dirt is possible using a pneumatic system equipped with two tanks with a capacity of 80 liters.
  • The discharge tunnel with a steering angle of 210 ° avoids complicated maneuvering. Another advantage that allows you to reduce operating costs is the ability to change not the entire tunnel, but only easily removable elements.
Engine
Manufacturer / modelMercedes-Benz ОМ 502 LA
Volvo TAD13.53
Nominal engine powerkW / hp331/450
345/470
Displacementl15.93
12.78
CylindersV8 / R6
Tank capacityl700
The capacity of the combine for 1 hour
Harvesting of milky-wax maizet / h155
Waxy maize harvestt / h75
Silage harvestingt / h70
Grass harvestingt / h75
Adapters
Corn headerm4.5
Pick-upm3.0
Grass headerm5.0
Pulling in
Widthmm770
Number of intake rollers4
Metal and stone detectorserial
Cutting unit
Typedrum
The width of the knife drummm780
Knife drum diametermm630
Rotation speedrpm1260
Knives40
Knife layout variants20/40
Cutting lengthmm6 - 40
Cutting length adjustmentfrom the cabin
Knife sharpeningautomatically from the cab
Additional shredderfight
Discharge tunnel
Rotation angle of the discharge tunnel°210
Unloading heightmm4000
Tank capacity for preservativesl300
Chassis
Transport speedkm / h0-20
Working speedkm / h12
Drive on both axlesNot
Dimensions and weight
Length / width / height in transport positionmm6850/3400/4000
The weight of the forage harvester without an adapterkg11000
